D114

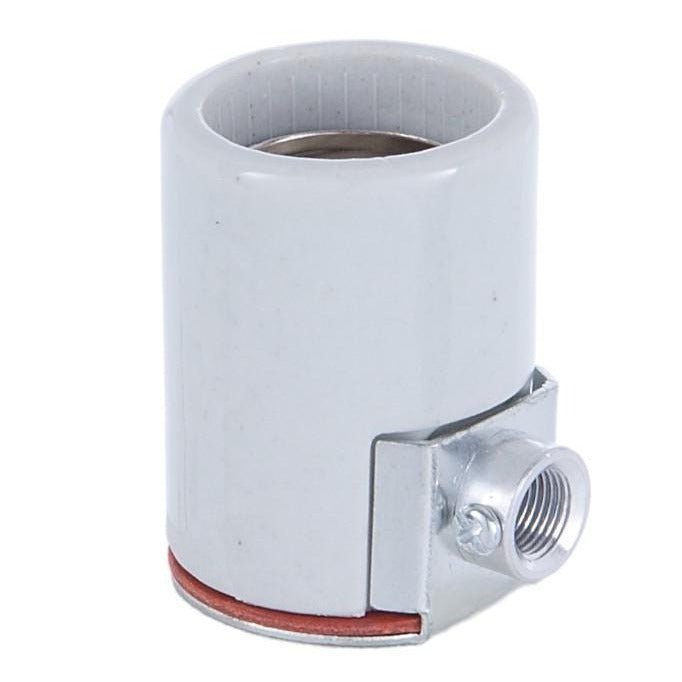

Side Outlet Glazed Porcelain Socket

This side outlet bushing porcelain lamp socket is constructed out of commercial-grade materials to ensure long life and higher quality.

    Part Number:

    D114

    Brand:

    BulbsCo

    Max Voltage:

    250V

    Cap:

    1/8 IPS

    Max Wattage:

    660W

    Height:

    2.125"

    Finish:

    Glazed White

    Diameter:

    1.50"

    Base Type:

    Medium (E26)

    Terminal:

    Screw

    Material:

    Porcelain

    Set Screw:

    Yes

    Safety Rating:

    UL

    Case Quantity:

    10

    CSA Listed:

    Yes

    Leads

    NO

    Feature:

    Side Outlet Bushing

    Type:

    Keyless

    • Copper -Nickel-plated screw shell
    • 1/8 IPS with set screw bushing extends 7/32" beyond the edge of the socket and centers 7/16" below cap surface
